Load Testing SharePoint (MOSS) Sites with JMeter

I have used JMeter for load testing few non-ASP.NET web sites before, however I could not get it to work with ASP.NET web sites. This is mainly due to ASP.NET ViewState and event validations, which stops a recorded JMeter script from being played back.

Recently I worked on a MOSS project and we were looking for tools to perform load testing on the server. Many people said the load testing tool in Microsoft Team System for Testers works well with MOSS. However, it is quite expensive so I decided to give JMeter another go. After several hours of hacking, I actually got it to work and here’s how I did it.

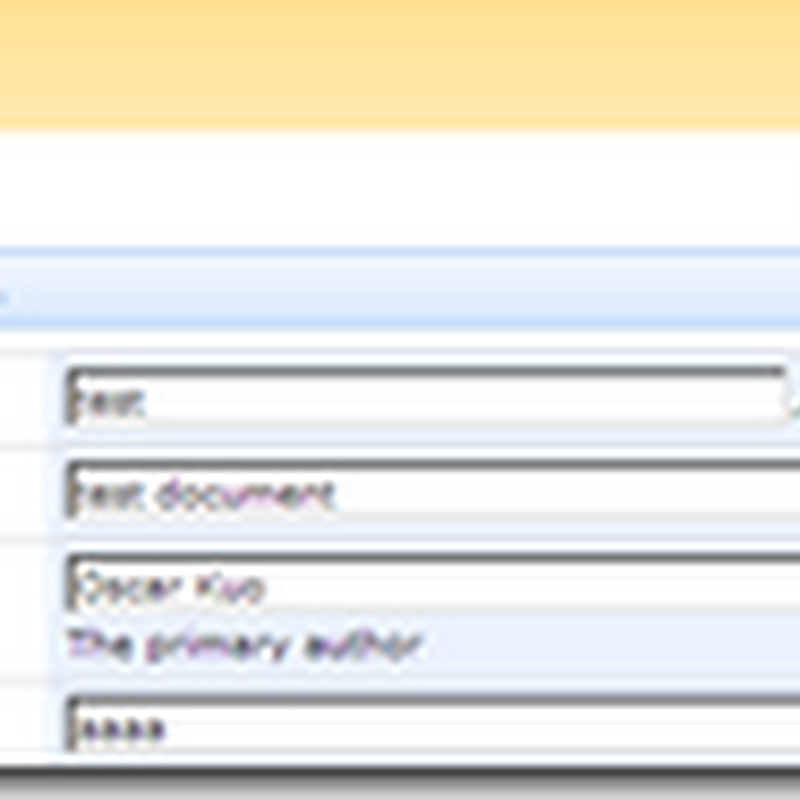

My test page is the pretty standard MOSS edit document property screen with few extra text fields added and the goal here is to use a JMeter script to change the document properties. Once I have a working script, I can configure JMeter to fire hundreds of instances of this script simultaneously to simulate the user workload.


As shown in the screenshot below, the test plan contains two HTTP requests recorded using the JMeter HTTP Proxy component and four JMeter Regular Expression Extractors in between them.:


The main trick here is to capture four key MOSS fields from the HTTP response of the “Load Edit Property From” HTTP request and send them back to the server AS IS in the “Submit Edit Property From” HTTP request along with new property values. These key fields are:

  1. __EVENTVALIDATION
  2. __VIEWSTATE
  3. __REQUESTDIGEST
  4. <control ID>_owshiddenversion

Load Edit Property Form

The Load Edit Property Form step is a simple JMeter HTTP Sampler generated by running the JMeter HTTP Proxy component and recording the HTTP request created by click on the Edit Properties menu item in the SharePoint drop down.


The response from the MOSS server will contains the four key fields that can be captured using JMeter Regular Expression Extractors.

Extract Event Validation

Regular Expression:

id="__EVENTVALIDATION" value="(.+?)"

Screenshot:


Extract View State

Regular Expression:

id="__VIEWSTATE" value="(.+?)"

Screenshot:


Extract Request Digest

Regular Expression:

id="__REQUESTDIGEST" value="(.+?)"

Screenshot:


Extract Hidden Version

This one is not so straight forward as the other three because the <Control ID> changes from page to page depending on the layout. It can be found by simply searching the string “owshiddenversion” in the HTML source for the edit property page. The HTML tag should look something like this:

<input id="ctl00_m_g_026c19e0_cd4b_48c9_a4b3_9e7409f252ac_ctl00_ctl02_ctl00_ctl05_ctl00_owshiddenversion" type="hidden" value="15" name="ctl00$m$g_026c19e0_cd4b_48c9_a4b3_9e7409f252ac$ctl00$ctl02$ctl00$ctl05$ctl00$owshiddenversion" />

Hence, the regular expression in this case is:

id="ctl00_m_g_026c19e0_cd4b_48c9_a4b3_9e7409f252ac_ctl00_ctl02_ctl00_ctl05_ctl00_owshiddenversion" value="(.+?)"

and the screenshot:


Submit Edit Property Form

The “Submit Edit Property Form” JMeter HTTP sampler is generated by recording the Submit button click using the JMeter HTTP Proxy component. JMeter displays all POST parameters contained in this request.


The Reference Names of the four keys fields (e.g. ${viewState} as shown in screenshot above) captured previously need to be entered into their corresponding parameter value fields. My test script also updates other parameters such as author and title for my testing purpose.

9 comments:

  1. great! i need to test an asp.net app, i'll give it a try!!

    ReplyDelete
  2. This was very useful to me, and gave me just a little more appreciation of how hairy Sharepoint is beneath the pretty surface.

    ReplyDelete
  3. Greate work...! is there an any way to parameterize the values. e.g. - Name, Title, Auther, Category.

    ReplyDelete
  4. Yes you can parameterize values by either extracting them from a HTTP response with extractor or setting user variables. You can even get JMeter to read all your test values from a CSV file. Check out the JMeter manual at http://jakarta.apache.org/jmeter/usermanual/test_plan.html#using_variables

    ReplyDelete
  5. Thanks so much for this. Clearest explanation I've found on the web.

    ReplyDelete
  6. Has anyone managed to get JMeter to work with a site that has NTLMv2 authentication?

    ReplyDelete
  7. to use NTLMv2 you have to add authorization compenent on Jmeter

    ReplyDelete
  8. How can I create JMeter scenario for testing ASP.NET pages - default page is login page with "Username" and "Password" fields (for entering username/password values) and [Login] button.
    These field are named in web form like "tbUsername", "tbPassword" and "btLogin".
    Firstly I need observe value "__VIEWSTATE" (from default page before login process) (is possible to use previous advance in this article), and values "__EVENTTARGET" and "__EVENTARGUMENT".
    And then?
    Have somebody some tips (or sample jmx-file)?

    ReplyDelete
