AOP with Enterprise Library Policy Injection Block

I used to think aspect oriented programming (AOP) is not a very useful idea because quite often it only saves few keystrokes but requires a massive configuration file. I only came to realise the true value of AOP recently when we have to convert 4+ million lines of legacy COBOL code to .NET with Microfocus’ Visual COBOL compiler. Manually adding exception handling and logging code to these existing COBOL subroutines will not only take a lot of time but also makes code merging task much harder later.

I started experimenting with the policy injection block in the Enterprise Library to see if it will make this job simpler. I tried to google for AOP and Enterprise Library tutorials but I found most tutorials on the web are either old (most were done using Enterprise Library 3) or over-complicated. Especially many of them use the Enterprise Library Logging Block to demonstrate the policy injection concept, which requires lots of configurations itself.

The policy injection in Enterprise Library is actually pretty easy to use and therefore in this tutorial I decided to demonstrate it with a simple custom call handler that requires no configuration. This is done so that you won’t be distracted by those extra settings in the App.config. Also, I’ll be using the Enterprise Library 5 configuration GUI editor, which looks quite different from the old one.

So let’s start with a basic console program with a simple interface IGreeter, which has a single operation SayHello:

public interface IGreeter
    void SayHello(string to);

and a very basic implementation, which prints a hello message to whatever name that was passed in:

public class Greeter : IGreeter
    public void SayHello(string to)
        Console.WriteLine("hello " + to);

Next, the Main method simply creates a greeter instance and then says hello to “bob”.

class Program
    static void Main(string[] args)
        var greeter = new Greeter();

Finally, below is a simple console logger call handler. It sits in a separate DLL (CustomCallHandlers.dll) and will be applied to the SayHello method above using the policy injection block.

public class ConsoleCallLogger : ICallHandler
    public ConsoleCallLogger(NameValueCollection collection)

    public IMethodReturn Invoke(IMethodInvocation input, GetNextHandlerDelegate getNext)
        Console.WriteLine("Before " + input.MethodBase.Name);
        var returnValue = getNext()(input, getNext);
        Console.WriteLine("After " + input.MethodBase.Name);
        return returnValue;

    public int Order { get; set; }

The implementation of the Invoke method should be pretty self-explanatory, it basically prints a before and after message around the method invocation. Check this link out if you would like to know more about how to implement the ICallHandler interface.

A couple of things to note about the ConsoleCallLogger class above. Firstly It needs to implement the ICallHandler interface and have the ConfigurationElementType class attribute. Following assembly references needs to be added to the project in order for Visual Studio to resolve these classes:

  • Microsoft.Practices.EnterpriseLibrary.Common
  • Microsoft.Practices.Unity.Interception
  • System.configuration

Secondly, a custom call handler class is required to have a constructor that accepts a NameValueCollection argument. As you’ll see when we start configuring the App.config file, you can pass name/value pair values to the custom call logger from the configuration file.

Now, to apply the ConsoleCallLogger to the SayHello method, we need to configure the policy injection block with app.config. Before we start let’s have a look what the file will look like at the end (note: I have added space in class names so it will wrap properly):

    <section name="policyInjection" type="Microsoft.Practices.EnterpriseLibrary.PolicyInjection.Configuration. PolicyInjectionSettings, Microsoft.Practices.EnterpriseLibrary.PolicyInjection, Version=5.0.414.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" requirePermission="true" />
      <add name="My Custom Logging">
          <add type="Microsoft.Practices.EnterpriseLibrary.PolicyInjection.MatchingRules. MemberNameMatchingRule, Microsoft.Practices.EnterpriseLibrary.PolicyInjection, Version=5.0.414.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35"
              name="Member Name Matching Rule">
              <add match="SayHello" />
          <add type="CustomCallHandlers.ConsoleCallLogger, CustomCallHandlers, Version=, Culture=neutral, PublicKeyToken=null" name="ConsoleCallLogger" />

Other than the ugly long class names, it's not too bad is it? You can pretty much just code this up by hand. However, since the enterprise library comes with a configuration editor, let's make use of it.

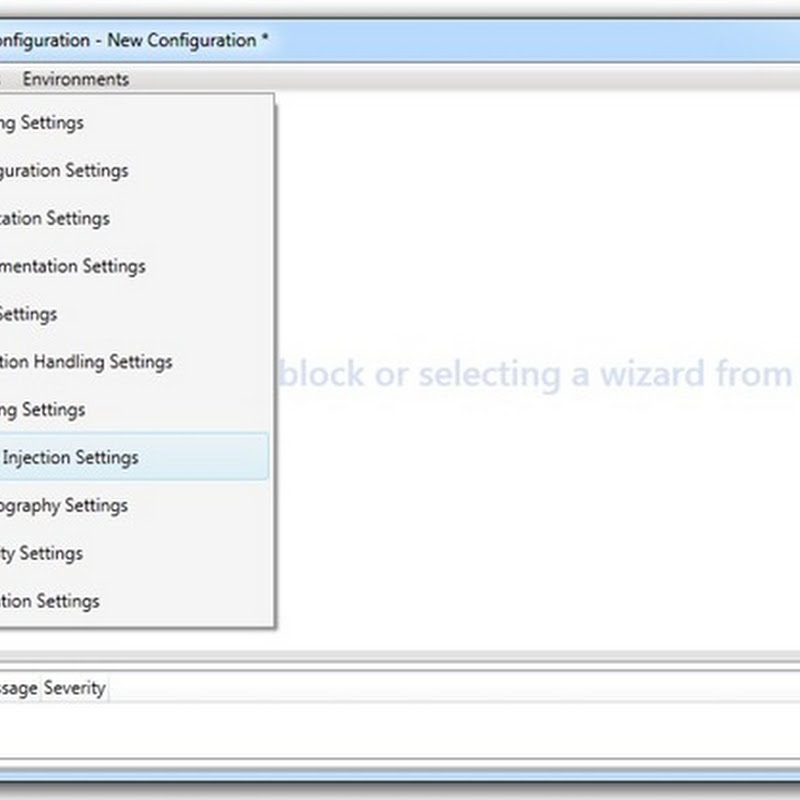

First of all we need to add a policy injection settings block in our file:


Next, right click on the policy injection block heading (“My Custom Logging” in my example) and add a member name matching rule block.


Enter our our target method name SayHello into the member name match field.


After telling the policy injection block how to find the target method (i.e. our SayHello method), we need to configure the call handler (i.e. the ConsoleCallLogger class). Again, right clean on our policy injection block header and choose “Add Custom Call Handler”.


This will popup a dialog box and if you choose “Add From File”, you can then select the location of the DLL that contains the ConsoleCallLogger class. After selecting the DLL, the ConsoleCallLogger class should show up on the tree control as shown below:


I did run into few problems when I was adding my DLL. Here are some tips if you run into problems too:

  1. Check your build settings, if you are using 64-bits EntLib configuration editor you should build 64-bits DLL too.
  2. Check your class, is it public? did you implement the ICallHandler interface? did you remember to add the ConfigurationElementType attribute? and did you pass typeof(CustomCallHandlerData) to it?
  3. Save and restart your configuration editor. I think there might be some bugs in the configuration editor because the first time I did this I just couldn’t get the ConsoleCallLogger class to show in the tree control no matter what I did. I end up saving and restarting a couple of times and eventually it came up.

After the call handler has been added, your setting should look something similar to this:


Now, save the app.config to the console program and add it to the project. To enable policy injection block in the console program, we first need to add following assemblies to the project:

  • Microsoft.Practices.EnterpriseLibrary.PolicyInjection
  • Microsoft.Practices.Unity.Interception
  • CustomCallHandlers (the DLL that contains the ConsoleCallLogger class).

Next we need to replace the direct object instantiation:

var greeter = new Greeter();

with PolicyInjection.Create in the Main method:

var greeter = PolicyInjection.Create<Greeter, IGreeter>();

If everything’s been configured properly, when you run the console program it’ll show the following output:

Before SayHello
hello bob
After SayHello

As you can see, the ConsoleCallLogger class has been magically applied to the SayHello method.

AOP is a very useful technique if you have to extend some legacy code without actually having to touch those code. Enterprise library already shipped with a few useful call handlers for common cross cutting concerns such as the logging and security. If none of them fits your needs you can always follow what I did in this tutorial and write your own call handlers.

Finally, you can download codes in this tutorial with the SkyDrive link below:


  1. Very nice. Thanks Oscar.

    However, I would like to see how this could be done by using Unity interception only and no configuration file. ;)

  2. Thanks for the example!

    You say 'AOP is a very useful technique if you have to extend some legacy code without actually having to touch those code', but detail a step where the original code is edited. Inserting 'var greeter = PolicyInjection.Create();'. Is there truly a way to apply Unity without modifying the code which you are advising (like with AspectJ or PostSharp)?

  3. Hi Anonymous,

    Yes some coding was involved and I agree this is not possible in some cases (e.g. adding logging to a live system in production environment).

    I wrote this article when I was starting in a new project to wrap legacy COBOL code in .NET web services, so I do not have this restriction.

    I haven't tried PostSharp or AspectJ and don't think it is possible to do this without PolicyInjection.Create() in Unity.


  4. As far as I know, PostSharp and LinFu are the only solutions if you want to do AOP in .NET without changing your code (without using a proxy).
